Eli-Wrap Pipe Repair Bandages are a quick action emergency pipe repair system that stops leaks instantly

FREE DELIVERY TO UK MAINLAND

It’s so simple to use with no mixing or measuring required. Eli-Wrap has woven fibreglass substrate impregnated with a water activated polyurethane resin. It’s ability to perform effectively in emergency situations greatly reduces costly downtime and production loss, and because of the products ease of use, it can be applied by practically any apprentice applicator.

Because successful repairs are possible within 20 minutes, it should be made available to all maintenance staff within your industry. Eli-Wrap is an ideal product to be kept onsite for emergencies.

  • Each kit contains a stick of epoxy putty, a 50mm wide x 3.6m roll of white bandage and a pair of latex gloves
  • Fast repairs for leaking pipes
  • Pipe usable in 30 minutes
  • For best results, the completed application should be no less than 10mm (3/8") in thickness
  • Eli-Wrap Bandages have good adhesion to copper, PVC, polypipe, metal & concrete
  • Available in 2 widths and 2 lengths



Application video for Eli-Wrap Pipe Repair Bandage



Specifications (Now WRAS Approved to BS6920)

  Surfaces   copper, PVC, polypipe, metal & concrete
  Interior/Exterior   interior & Exterior
  Drying time   allow 30 minutes for Eli-Wrap to set rock hard
  Catalyst   water
  Resin make-up   polyurethane
  Heat resistance   over 200°C (390°F), service temps as low as -45°C (-50°F)
  Bonds   copper pipe, PVC, Polypipe, metal & fibreglass
  Sets   20-30 minutes, sets underwater
  Chemical fuels and oil resistant   most diluted chemicals and fuels
  Strength   internal pressure up to 1000 k.p.a.
  Pressure   up to 30 Bar ( 435 psi )



Surface Preparation

Prepare the surface by cleaning the damaged area thoroughly, disposing of any foreign bodies. A clean roughened surface helps result in a successful repair.



Mixing

Open the pouch and immerse the Eli-Wrap Bandage in fresh water for 10 seconds to activate. The entire contents must be used once the package is opened



Application

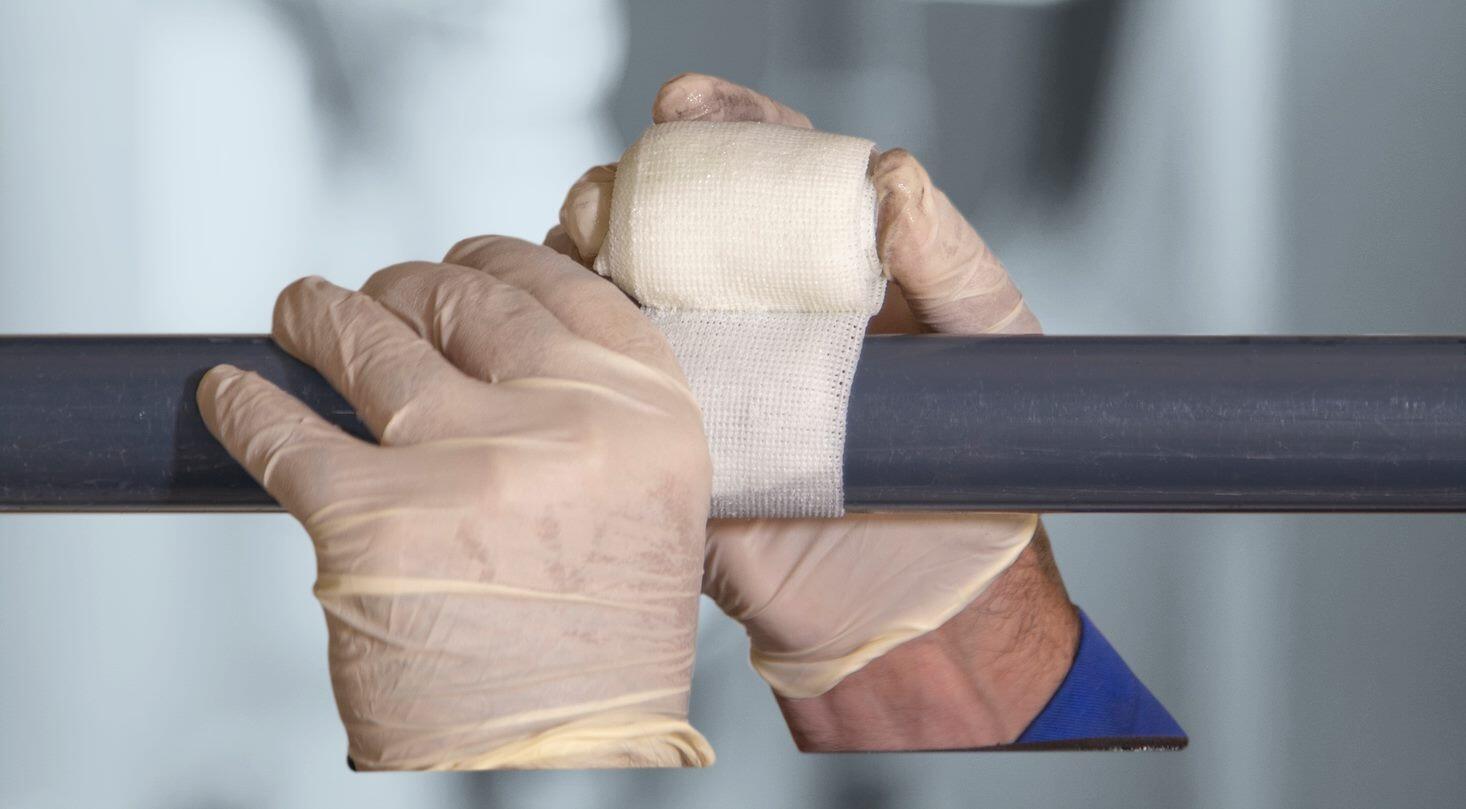

Apply Eli-Wrap Steel Putty to the leak site and mould. Then apply the Eli-Wrap Bandage around the damaged area, extending up to 50mm (2") either side of the leak to ensure complete coverage. It is important that the bandage is applied quickly as curing begins once it is taken out of the water.

Whilst wrapping, pull each layer tightly and firmly, using your hand to mould and squeeze the layers together in a tightening motion. Continue to apply pressure by this action during application and upon completion.



Application Instructions (PDF)                     Safety Data Sheet MSDS (PDF)                     Product Data Sheet TDS (PDF)





Write a review

Note: HTML is not translated!
    Bad           Good

Eli-Wrap Pipe Repair Bandage

  • Product Code: FM/ELIWRAP
  • Availability: In Stock

  • £30.00

  • Ex Tax: £25.00

Available Options
