It's so simple to use, with no mixing or measuring required. Eli-Wrap has woven fibreglass substrate impregnated with a water activated polyurethane resin. It's ability to perform effectively in emergency situations greatly reduces costly downtime and production loss, and because of the products ease of use, it can be applied by practically any apprentice applicator. Because successful repairs are possible within 20 minutes, it should be made available to all maintenance staff within your industry. Eli-Wrap is an ideal product to be kept onsite for emergencies.

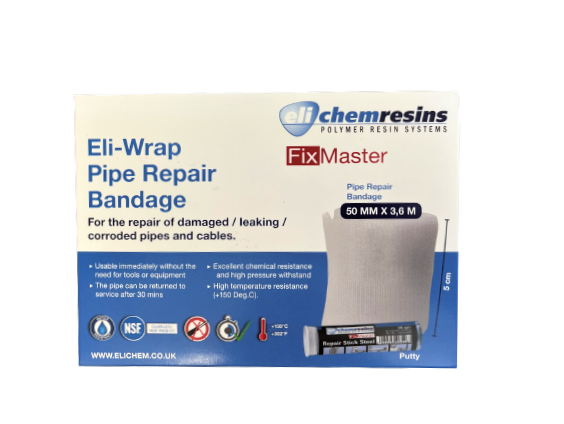

• Each kit contains a stick of epoxy putty, a 50mm wide x 3.6m roll of white bandage and a pair of latex gloves
• Fast repairs for leaking pipes
• Pipe usable in 30 minutes
• For best results, the completed application should be no less than 10mm (3/8") in thickness
• Eli-Wrap Bandages have good adhesion to copper, PVC, polypipe, metal & concrete
• Available in 2 widths and 2 lengths

Application video for Eli-Wrap Pipe Repair Bandage

Specifications (Now WRAS Approved to BS6920)
Surfaces: copper, PVC, polypipe, metal & concrete
Interior/Exterior: interior & Exterior
Drying time: allow 30 minutes for Eli-Wrap to set rock hard
Catalyst: water
Resin make-up: polyurethane
Heat resistance: over 200°C (390°F), service temps as low as -45°C (-50°F)
Bonds: copper pipe, PVC, Polypipe, metal & fibreglass
Sets: 20-30 minutes, sets underwater
Chemical fuels and oil resistant: most diluted chemicals and fuels
Strength: internal pressure up to 1000 k.p.a.
Pressure: up to 30 Bar ( 435 psi )

Surface Preparation
Prepare the surface by cleaning the damaged area thoroughly, disposing of any foreign bodies. A clean roughened surface helps result in a successful repair.

Mixing
Open the pouch and immerse the Eli-Wrap Bandage in fresh water for 10 seconds to activate. The entire contents must be used once the package is opened.

Application
Apply Eli-Wrap Steel Putty to the leak site and mould. Then apply the Eli-Wrap Bandage around the damaged area, extending up to 50mm (2") either side of the leak to ensure complete coverage. It is important that the bandage is applied quickly as curing begins once it is taken out of the water.

Whilst wrapping, pull each layer tightly and firmly, using your hand to mould and squeeze the layers together in a tightening motion. Continue to apply pressure by this action during application and upon completion.
