Resin bound gravel paving binds together small stones with high-tech UVR resin to form a firm, attractive surface which is permeable when used as a resin bound system

FREE DELIVERY TO UK MAINLAND

When rainwater falls on a paved surface, it needs to drain away or the water flows across the surface forming pools, adding to the flood risk and cracking. Conventional solid surfaces are impermeable but gravel surfaces avoid this problem as water flows freely through the small stones and into the ground, the downside to gravel is that it can be messy and difficult for pushchairs or wheelchairs. Resin bound paving combines the benefits of both solid and gravel surfaces.

Resin bound UV resistant systems create many small gaps that allow water to drain through into the ground. Specially formulated for resin bound installations of driveways, paths and patios, our 10Kg kit can be mixed with 100 kgs of specialist aggregates of 1-5mm, which are available from builders merchants, to create a surface as strong as concrete. A resin bound system will typically be laid at 15mm thick to an existing sub-base to create a firm surface.

This product can also be used as a resin bonded sytem where the resin is applied to the substrate and the gravel is scattered across the surface.

  • Replicates the drainage and appearance of loose gravel
  • Replicates the durability and convenience of block paving
  • UV resistant formulation
  • Environmentally friendly and reduces flood risk when used as a gravel bound system
  • Conforms to S.U.D.s regulations (Sustainable Urban Drainage) when used as a gravel bound system
  • Good chemical resistance
  • Attractive finish
  • Easy maintenance

Read more information on the difference between Resin Bound and Resin Bonded systems

We can also supply the gravel, please call us if required

Specifications

  Surfaces   concrete, screeds, asphalt & tarmac
  Interior/Exterior   exterior
  Curing time   resin bound – foot traffic in 12 hours, light traffic in 2 days at 20°C
  Curing time   resin bonded – touch dry in 3-4 hours, full cure in 1 day at 20°C
  Coverage   resin bound – 1m² per kg of resin using 1-3mm gravel, aggregate to resin ratio 8/1
  Coverage/pack   resin bound – the 5kg resin kit mixed with 40kgs of aggregate will cover ~5m²
  Coverage/pack   resin bonded – the 5kg resin kit will cover ~7-8m² @ 0.7mm thick
  Pot Life   40 minutes @ 15°
  Shelf life   one year in sealed containers



Surface Preparation

In all cases surfaces should be clean, dry, sound and free from any oil or contaminants, the gravel should also be completely dry before being mixed with the resin.

Mixing

Mix the resin and hardener individually and mix for 3-5 minutes using an electric drill and mixing paddle, or wide bladed tool, working around the sides and base so all liquid is incorporated to ensure thorough and complete mixing.

Application

Best results are obtained in ambient temperatures (15°C or above)

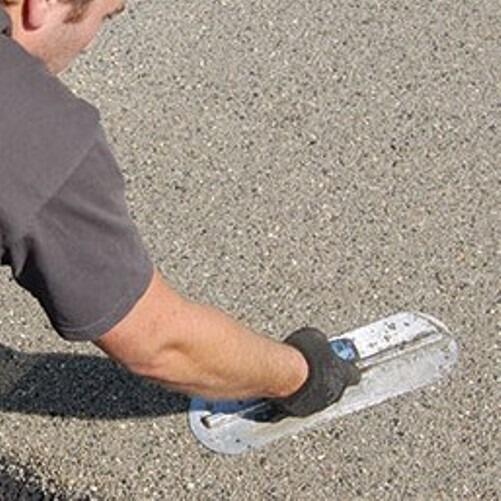

Resin Bound – Add the gravel and mixed resin at a ratio of 1 part mixed material to 8 parts gravel in a mechanical mixer for 5 minutes. When fully mixed empty the contents into a barrow and apply to the area, rake, tamp and trowel smooth as required.

Resin Bonded – Apply a layer of resin to a suitable surface is and cover with loose aggregate. Once cured the remaining loose stones can be removed by sweeping the surface. Thickness is governed by aggregate size. i.e. 1-3mm aggregate will have a nominal depth of ~4mm. With resin bonded gravel surfaces it is important that proper drainage is installed to prevent flooding.

Please read the Technical Data Sheet below

Technical Data Sheet (PDF)                             Safety Data Sheet MSDS (PDF)

Write a review

Note: HTML is not translated!
    Bad           Good

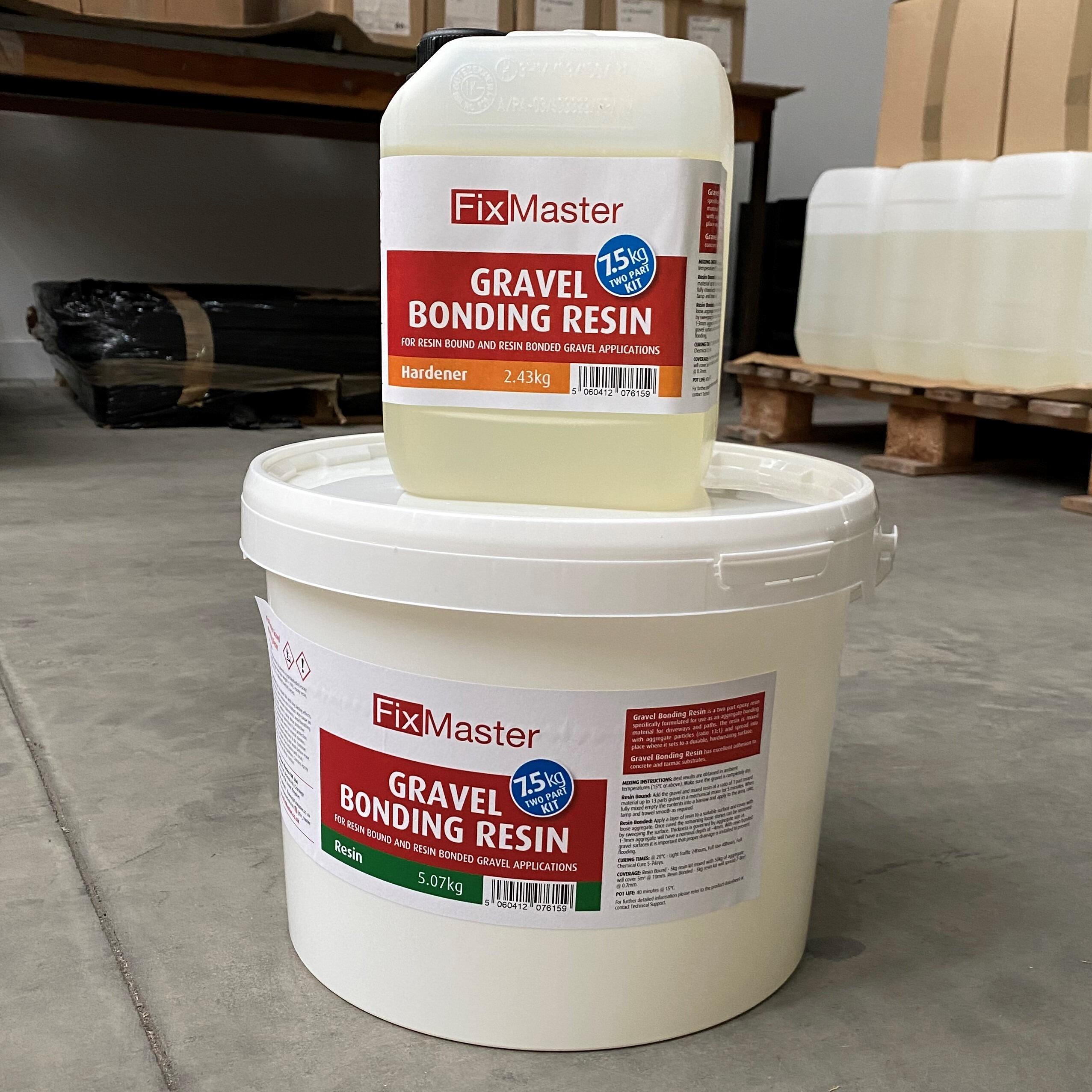

Resi-Bound for Resin Bound & Resin Bonded Gravel Paving
